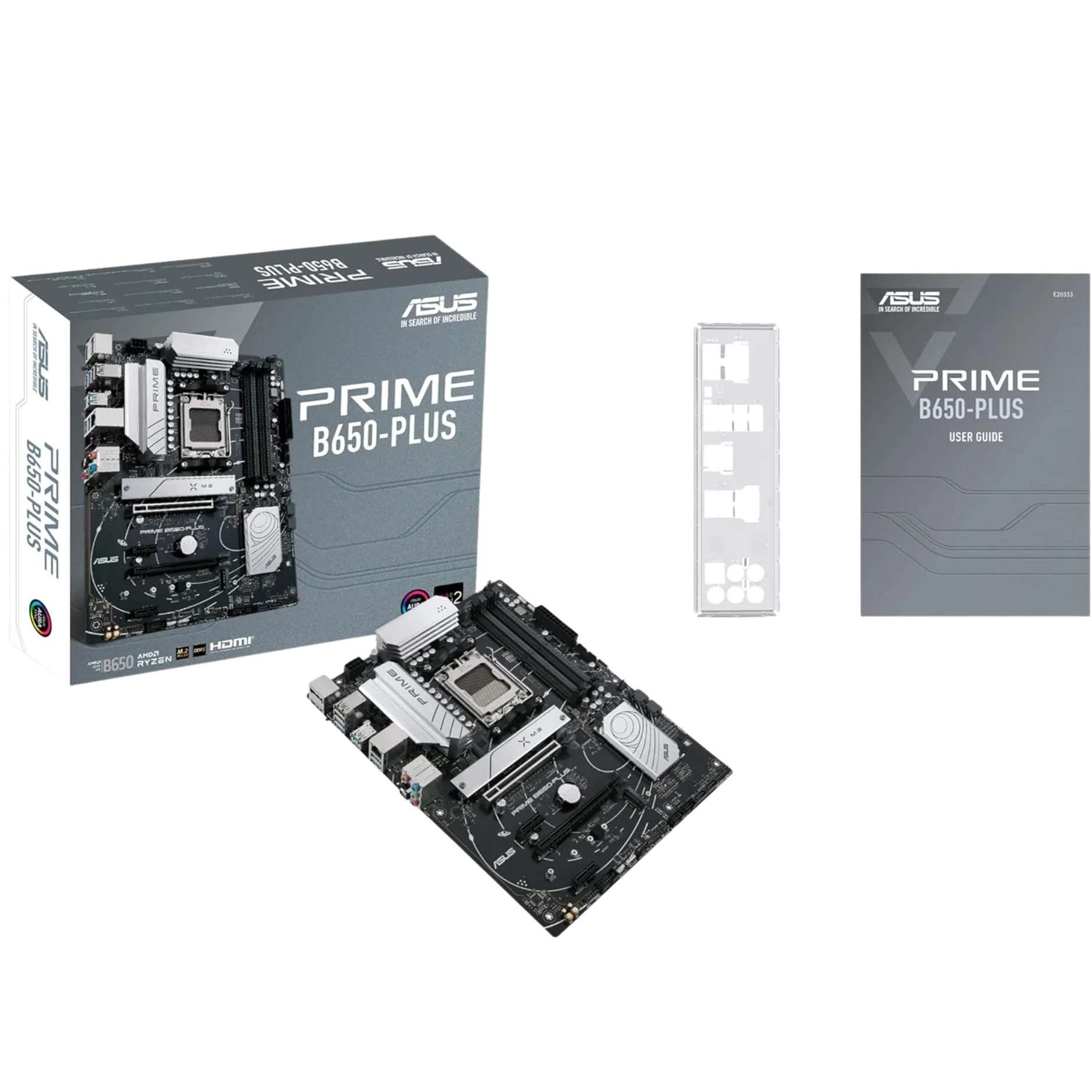

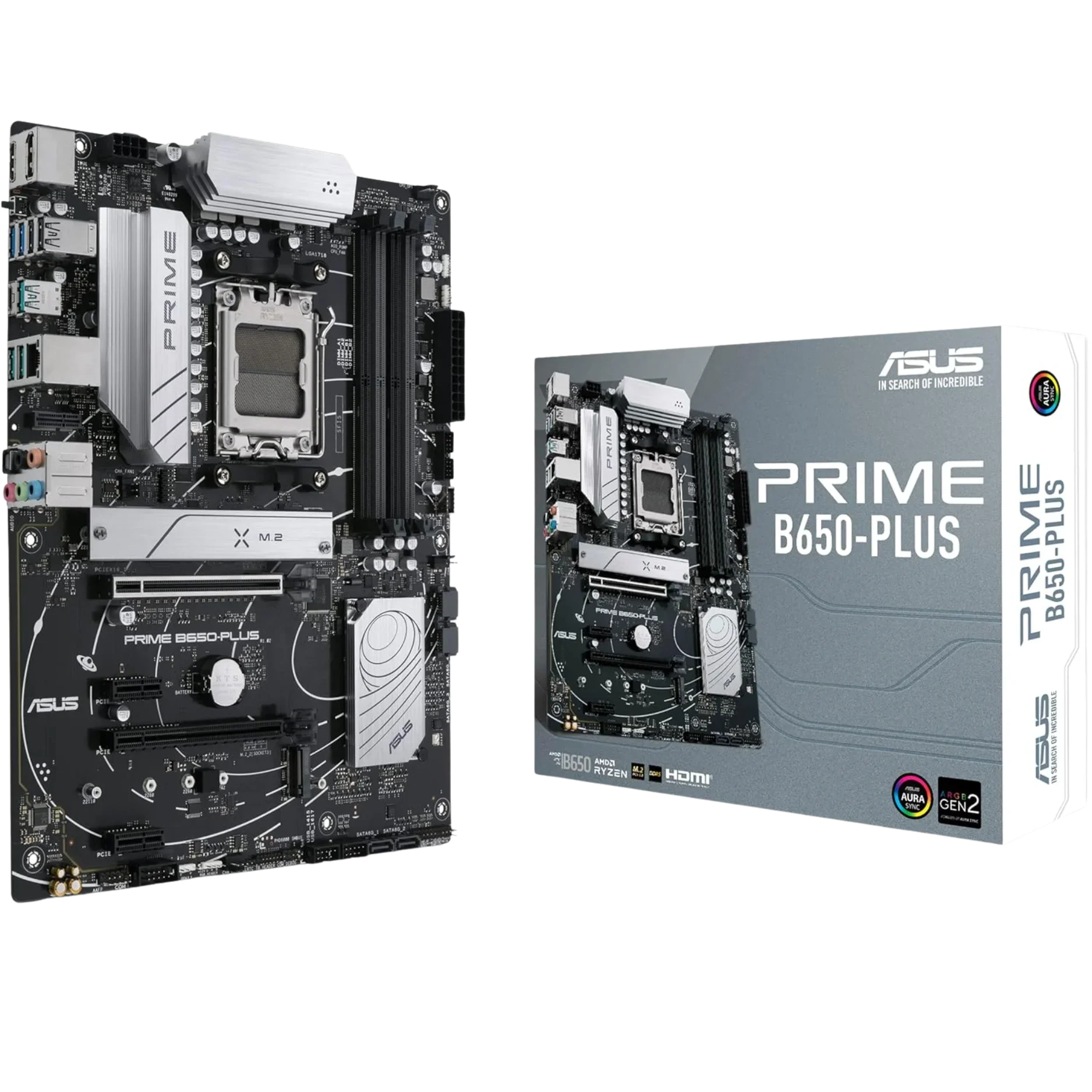

ASUS Prime B650-PLUS ATX Motherboard: AM5, DDR5, PCIe 5.0 M.2, 2.5Gb LAN

The ASUS Prime B650-PLUS is a robust and feature-rich ATX motherboard built for the latest AMD Ryzen™ desktop processors (9000, 8000, and 7000 Series). It provides a solid foundation for high-performance builds, supporting cutting-edge technology like DDR5 memory and PCIe 5.0 M.2 storage. With comprehensive cooling, 2.5Gb Ethernet, BIOS Flashback™, and native USB4® support via a header, the B650-PLUS delivers the essential speed and connectivity for demanding users and builders.

Product Specifications

• Form Factor: ATX
• Chipset: AMD B650
• CPU Socket: AMD AM5 (Supports Ryzen™ 9000, 8000, and 7000 Desktop Processors)
• Memory (RAM): 4x DDR5 DIMM slots (Supports up to $6400 + MHz} OC)
• Storage Interface: 1x PCIe 5.0 M.2 Slot, 1x PCIe 4.0 M.2 Slot, 4x SATA 6  Gbps ports
• Primary PCIe Slot: 1x PCIe 4.0 x16 Slot (SafeSlot Core+)
• Networking: Realtek 2.5 Gb Ethernet
• Video Outputs: DisplayPort (DP) and HDMI®
• Audio: Realtek 7.1 Surround Sound High Definition Audio
• USB Support: USB 3.2 Gen 2 (10 Gbps) ports (Type-A and Type-C®), USB 3.2 Gen 1 ports, USB4® Support via onboard header
• Special Feature: BIOS FlashBack™ button

Key Features

• AM5 Platform Support: Ready for the latest generation of powerful AMD Ryzen™ desktop CPUs, ensuring compatibility for current and future upgrades.

• Ultrafast Connectivity: Features a PCIe 5.0 M.2 slot for blisteringly fast SSDs, and 2.5 Gigabit Ethernet for superior networking speeds over standard gigabit LAN.

• DDR5 Compatibility: Unleash maximum performance with the latest DDR5 memory standard, supporting high overclocked speeds for gaming and content creation.

• Robust Power Delivery: Built with a reinforced digital power design to reliably drive high-core-count Ryzen processors under load.

• BIOS FlashBack™: Update the BIOS without installing a CPU, memory, or graphics card—essential for supporting future CPU releases.

• Future-Proof I/O: Includes support for USB 3.2 Gen 2 Type-C® and an onboard header for native USB4® expansion, offering incredible data transfer flexibility.

How It Works

The ASUS Prime B650-PLUS serves as the central hub connecting all components of a high-performance PC build:

1. CPU & Power Delivery: The AMD AM5 socket receives the Ryzen processor. The motherboard's robust VRM (Voltage Regulator Module) draws power from the ATX PSU connection and filters/distributes it efficiently to the CPU, ensuring stable operation and maximizing clock speeds under heavy loads.

2. Data & Memory Access: When the system is running, the AMD B650 chipset manages traffic between peripherals. DDR5 RAM modules are clocked at high frequencies, communicating directly with the CPU for ultra-low-latency data access. The PCIe 5.0 M.2 slot provides the widest data lane connection directly to the CPU, enabling the fastest possible storage speeds for the operating system and applications.

3. Connectivity & Networking: The integrated 2.5 Gb Realtek LAN chip handles network traffic, providing bandwidth for smooth online gaming and fast file transfers. The various USB controllers manage external connections, with the high-speed USB 3.2 Gen 2 and USB4® headers facilitating rapid data transfer to external drives and peripherals.

4. BIOS & Updates: The BIOS FlashBack™ feature allows the user to load a new firmware update (BIOS) directly from a USB drive to the motherboard's non-volatile memory without needing a working CPU installed, simplifying hardware support updates.

FAQs

Does this motherboard support PCIe 5.0 for graphics cards?

No. While this motherboard features a PCIe 5.0 M.2 slot for SSD storage, the primary PCIe slot for the graphics card is PCIe 4.0 x16. This is standard for most B650 motherboards and still provides ample bandwidth for all current-generation GPUs.

What is the benefit of 2.5 Gb Ethernet over standard 1 Gb LAN?

2.5 Gb Ethernet offers 2.5 times the bandwidth of standard Gigabit Ethernet. This dramatically improves file transfer speeds across a local network (LAN) and ensures the fastest possible connection for high-speed internet services where the connection exceeds 1 Gbps.

How do I enable USB4® support?

The motherboard includes an onboard header for USB4®.35 To utilize this, you must purchase a separate, compatible add-in card (often called a Thunderbolt/USB4 card) and connect it to this header, as the controller is not integrated into the motherboard itself.

Is the ASUS Prime B650-PLUS suitable for overclocking?

Yes. The motherboard's Digital VRM design and good cooling solutions are adequate for stable overclocking of both the Ryzen CPU (PBO) and DDR5 memory modules (via AMD EXPO™/DOCP profiles), making it a solid choice for performance enthusiasts.
