Bass Package 1 X SLC-MD12 In a Ported Box with S-1500.1/RD Amplifier and 4-GA Amp Kit 250 Watts Rms

DS18 LSE-112A Bass Package 1 x SLC-MD12.4 In a Ported Box with S-1500.1/RD Amplifier and 4-GA Amp Kit 500 Watts

Looking for that perfect bass package but are overwhelmed by all the options? We have made it easy with our loaded subwoofer box the LSE112A! This is a prefabricated box that comes with one of our best selling subwoofers. Included is a beautiful carpeted box with DS18 logo designs tuned to 35 hz. The box is constructed by thick 1/2 MDF for great sound and resonance. The sub included is the very popular MD12.4 that is a single voice coil 4 ohm sub with a nominal impedance of 4 ohms that will require 250w rms. This loaded box is a great entry level solution to hard hitting heavy bass for all to enjoy.

Highlights

• The box is constructed of 1/2 inch MDF for great strength, resonance, and tuned to 35hz for low hitting bass.
• One SLC 12 inch sub will give you the cone area to push out great sounding bass without a lot of power requirements.
• Great design and carpeting with DS18 logos to give your system the flair it deserves and also brings a show quality look.
• Great durability so you can enjoy hard hitting bass for years to come.

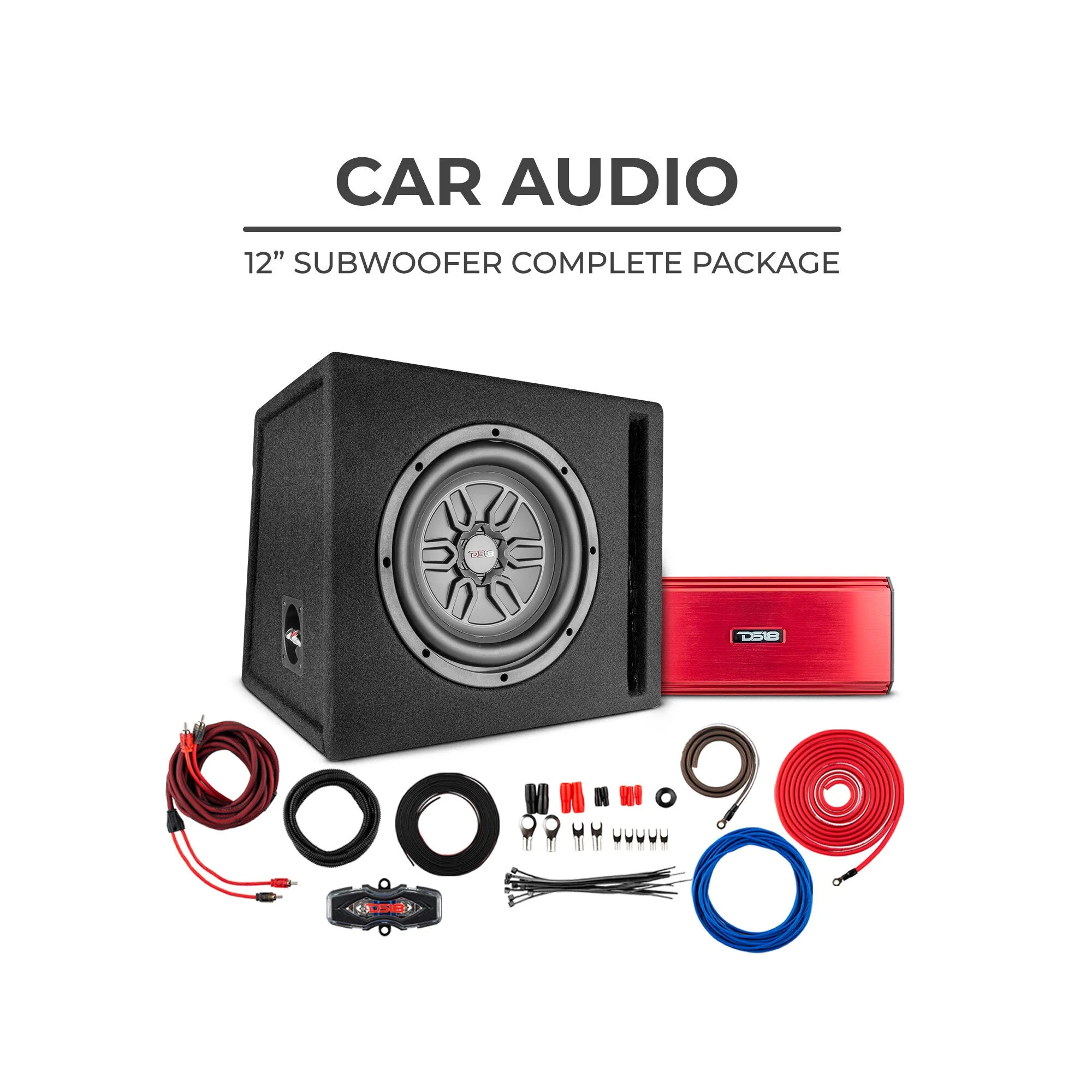

What's in the package?

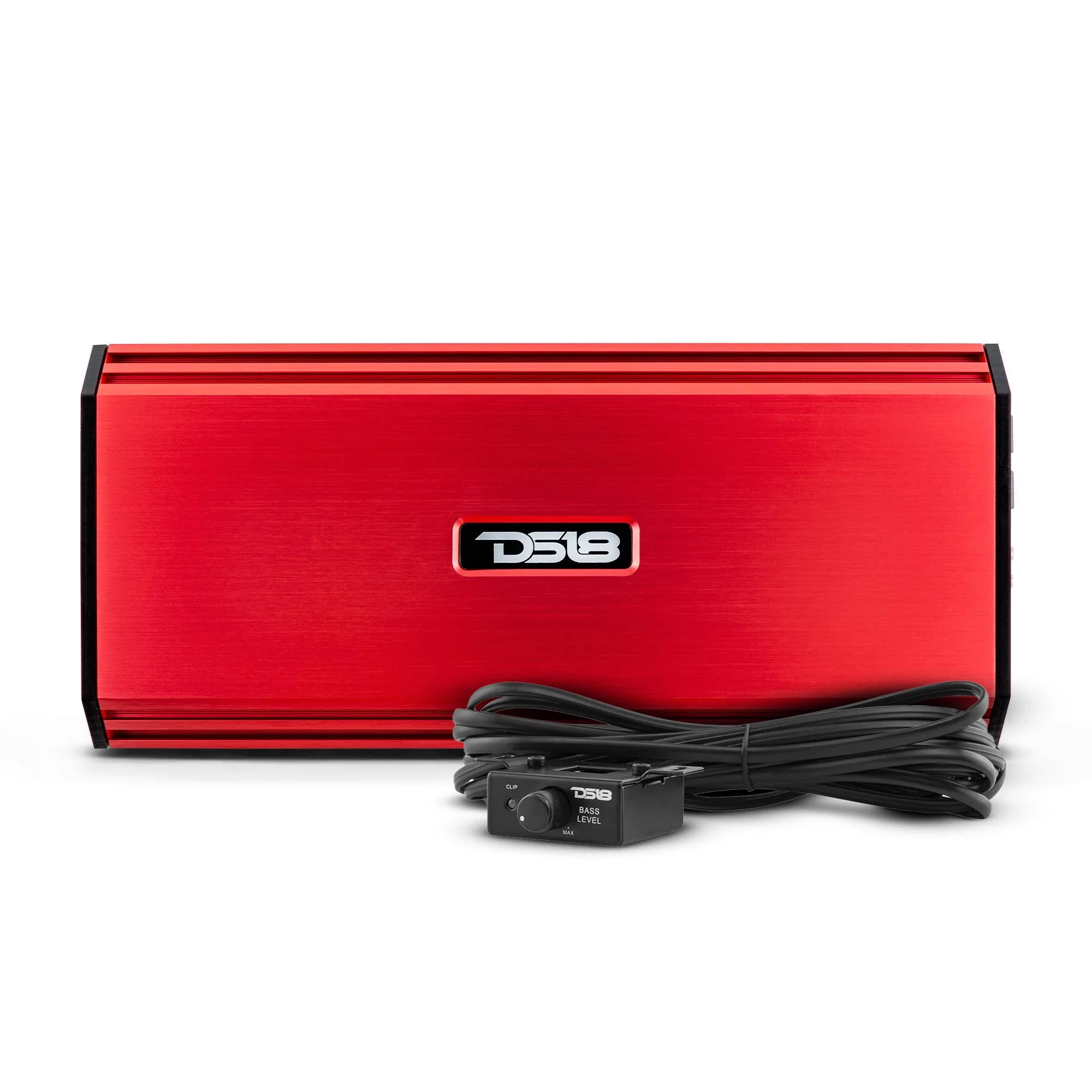

• S-1500.1 AMPLIFIER

Amplifier
Circuit Topology	Class AB Monoblock Amplifier
RMS Power Output @ 2 OHMS	350 watts
RMS Power Output @ 4 OHMS	220 watts
Total Harmonic Distortion	< 3%
S/N Ratio Ref 1w @ 4 OHMS	>90db
Gain Range	0.2-6V
Crossover Range	50-250hz
Frequency Range	20Hz-500 Hz
Dimensions	13.7/348mm x 5.8/148mm x 1.8 / 47.5mm

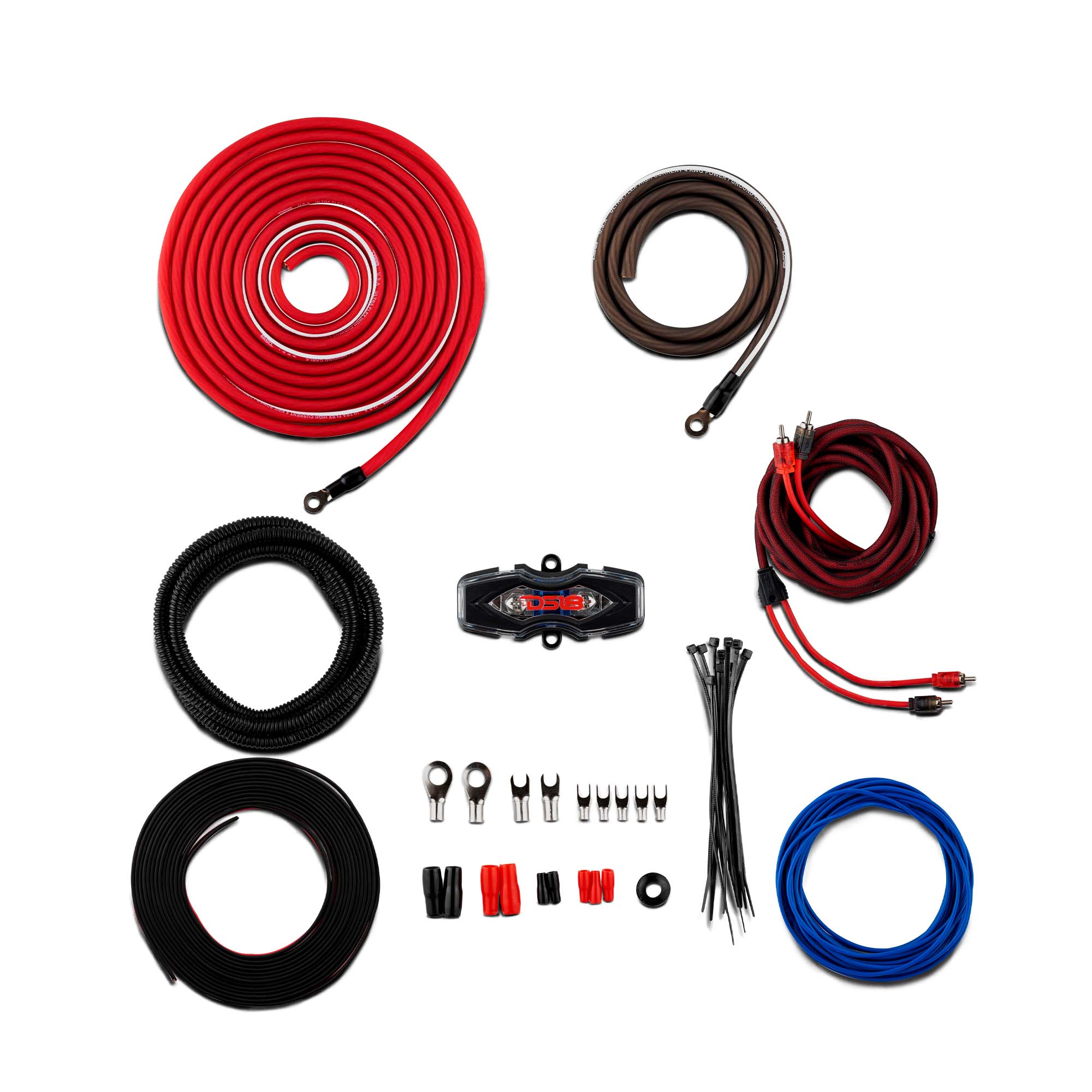

• 4-GA AMP KIT - 500 WATTS

• AGU Fuse Holder With AGU-100A

• 6ft. 4GA Loom Tube

• Rubber Grommet

• 17ft. Red Power Cable: 21mm² OD: 10mm

• 3ft. Black Ground Cable: 21mm² OD: 10mm

• 17ft. Red/Black Twisted RCA Cable

• 17ft. Turn-On Cable: 20*0.15mm

• 17ft. Red/Black Speaker Cable: 1.31mm² x 2 wires OD 3.2 x 6.4mm

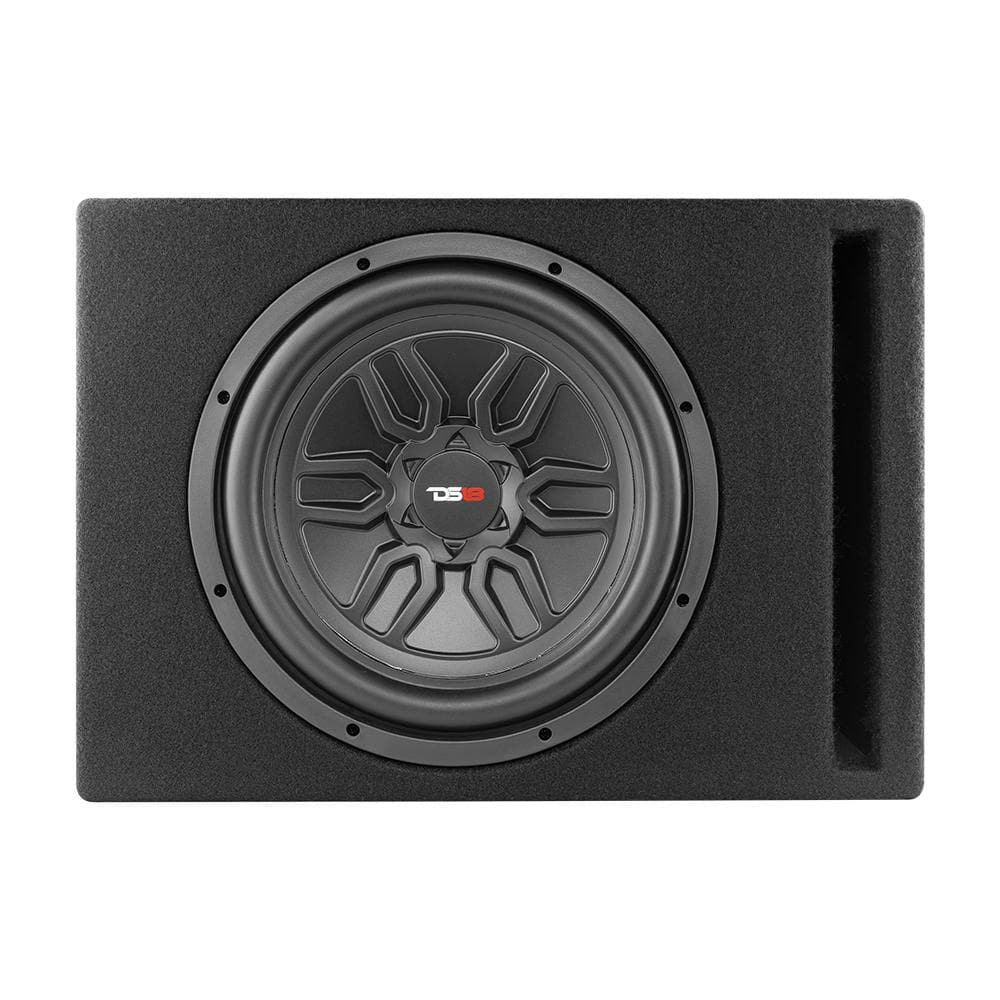

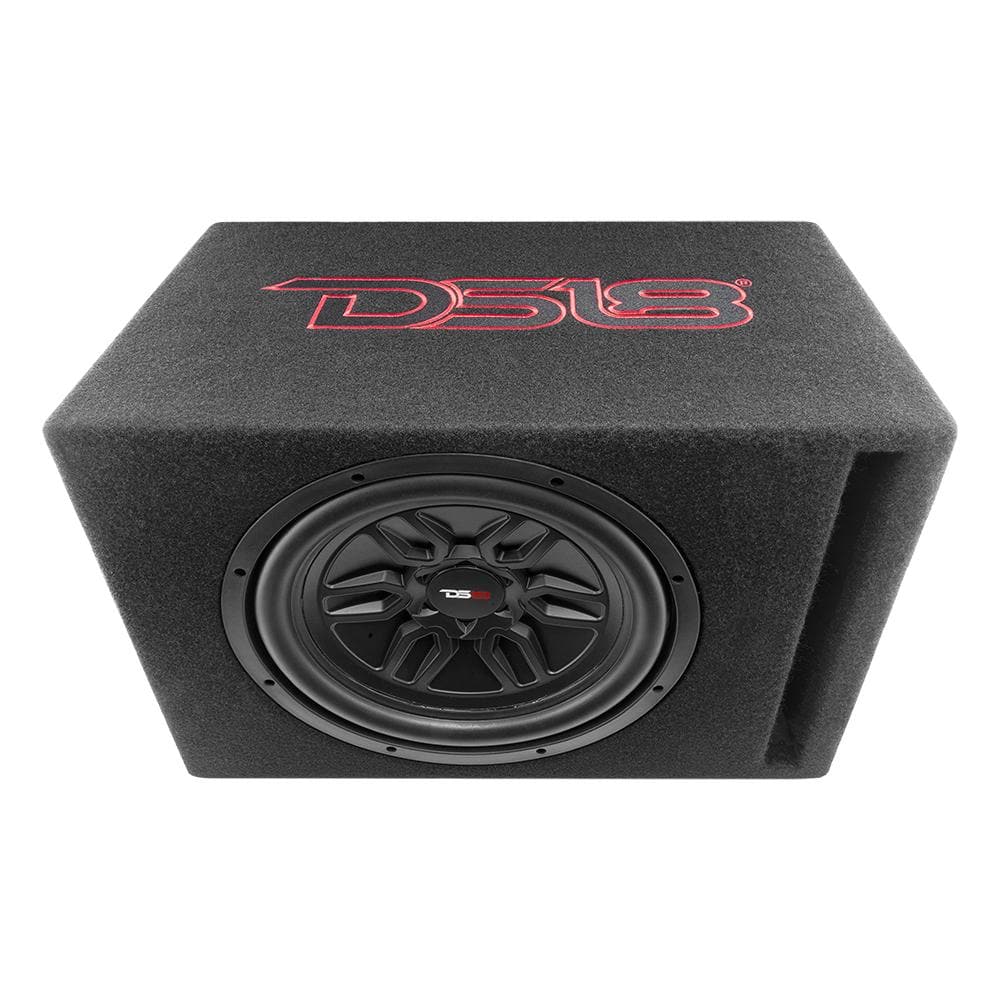

SLC-MD12 IN A PORTED BOX

Model:	SLC-MD12
Type:	Subwoofer
Size:	12"
RMS Power:	250W
MAX Power:	500W
Impedance:	4
Voice Coil Size:	2"
Magnet:	Ferrite
Magnet Size:	42 oz



Technical Details

General
Speaker Size	Single 12
Total Impedance	4 ohms
Total RMS Power Handling	250 watts
Total MAX Power Handling	500 watts
Sensitivity (1w/1m)	93 db
Frequency Response	29-250hz
Recommended Lo Pass Crossover	80 Hz
Subwoofer
Voice Coil Diameter	50.8mm (2)
Voice Coil Former Material	Aluminum
Winding Material	ACCAW
Cone Material	PPI
Surround Material	Rubber
Basket Material	Steel
Magnet Material	Ferrite
Magnet Weight	42 oz
Box Specifications
Port Tune	35hz
Dust Cap Material	45.3L
Load Configuration	Front Ported
Box Material	1/2" MDF
Finish Material	Vinyl
Measurements
Height	13.78 / 350mm
Width	19.68 / 500mm
Depth 1	11 / 280mm
Depth2	14 / 356mm
