DS18 CARPK-3 Complete 6.5 Sound System With Included Booming Under The Seat Powered Sub
DS18 CARPK-3 Complete 6.5 Sound System With Included Booming Under The Seat Powered Sub
Crafted by those who like it LOUD for those who want to get LOUD, DS18’s CARPK-3 is the ultimate solution for car audio enthusiast looking to boost the BOOM in their car’s audio system.

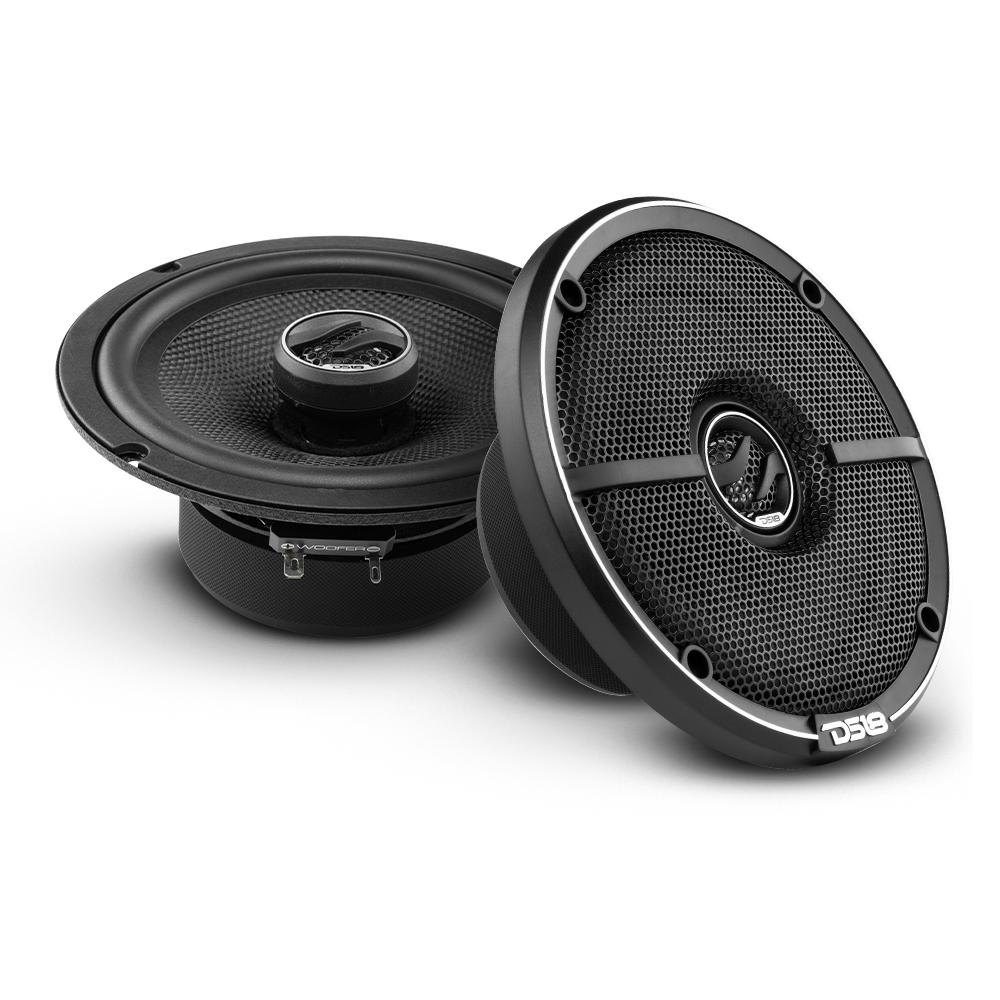

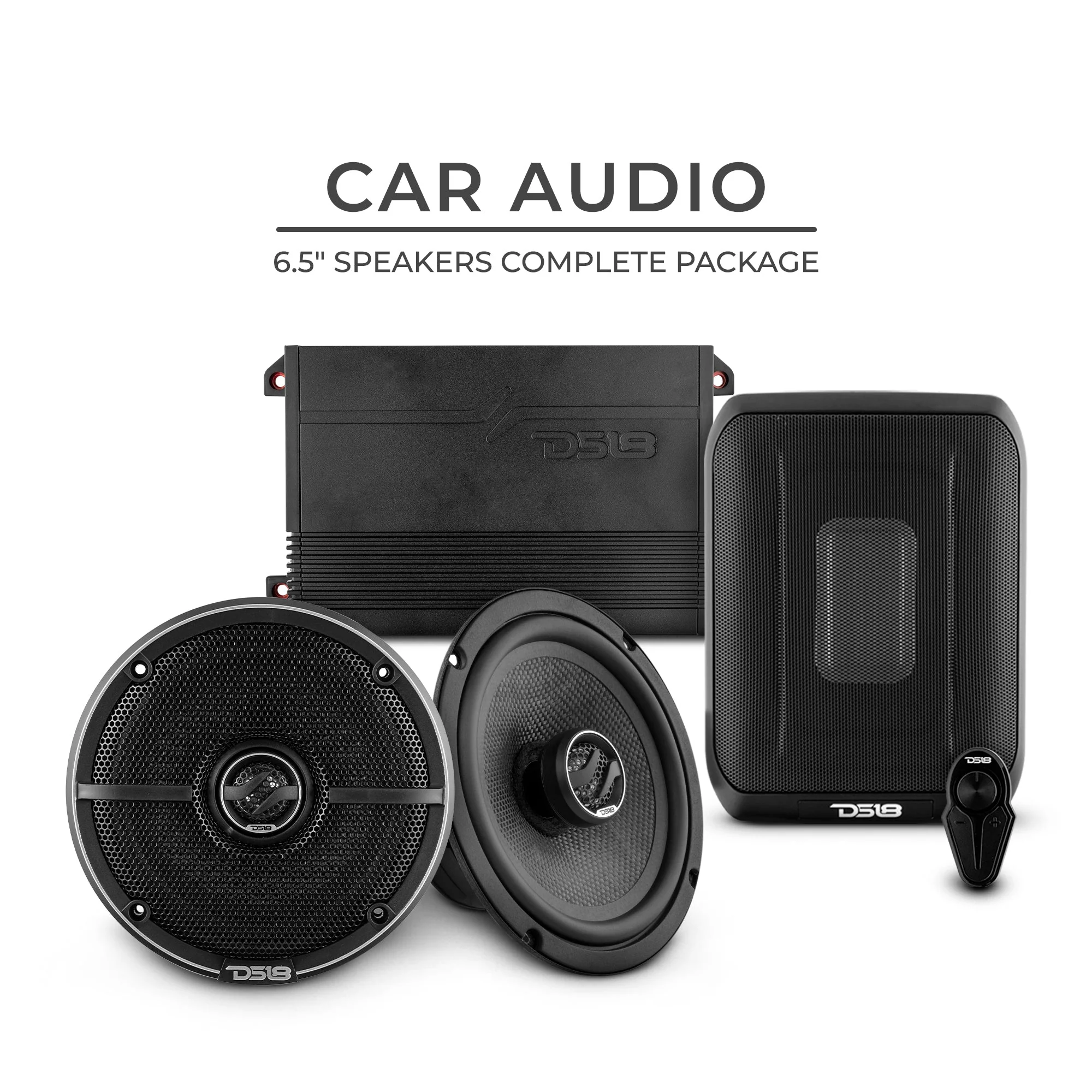

This package includes: one pair of our ZXi654, our powerful 2-way coaxials; the SQBASS68, our underseat amplified subwoofer designed to put some thump in your trunk; skillfully matched with the G700.2D, a high-powered amplifier guaranteed to deliver crystal-clear sound on demand.
With a nominal impedance of 4-Ohm and a MAX power handling of 240W, DS18’s ZXI-654 has all the power it needs to get LOUD! These 6.5” speakers are designed with precision and ingenuity, incorporating top-notch components such as a glass fiber cone for accurate sound reproduction, a rubber surround for enhanced durability, and a steel basket for robust structural integrity. This speaker is the best option for the audio enthusiast who likes it LOUD!

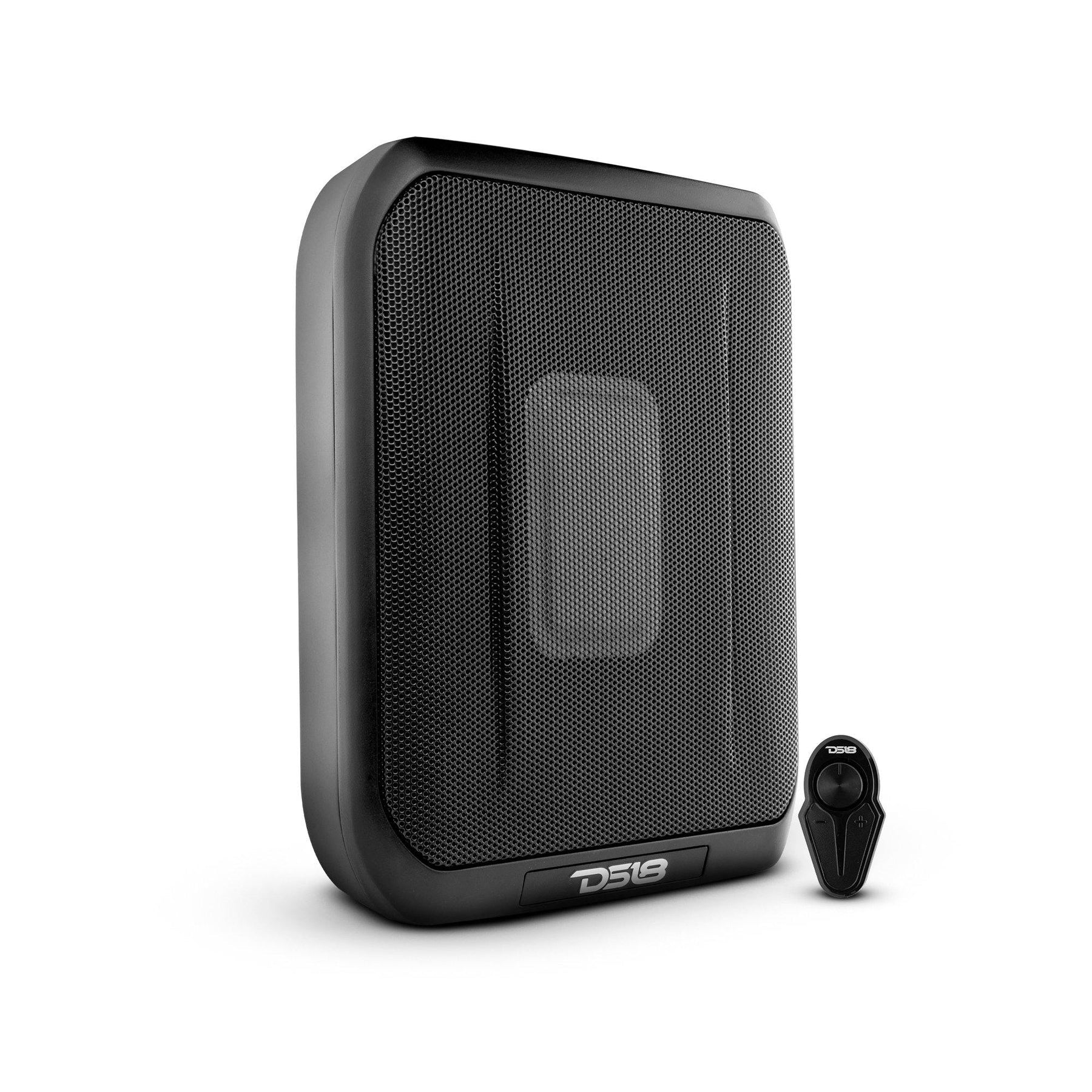

Newly designed for vehicles that want to add some bass but have very little to no room for large subs and boxes, the SQBASS68 incorporates a 6x8" Subwoofer into a compact enclosure designed specifically for extending and elaborating bass reproduced by your subwoofer! The SQBASS68 fits under most conventional car seating, rear cubby, or medium sized storage compartments so you have clear and vibrant bass even if you have no room. The unit also comes with volume control input so you can find the perfect bass level for your musical preferences. With 600W MAX power available on tap you will be sure to get goosebumps every time the beat drops.

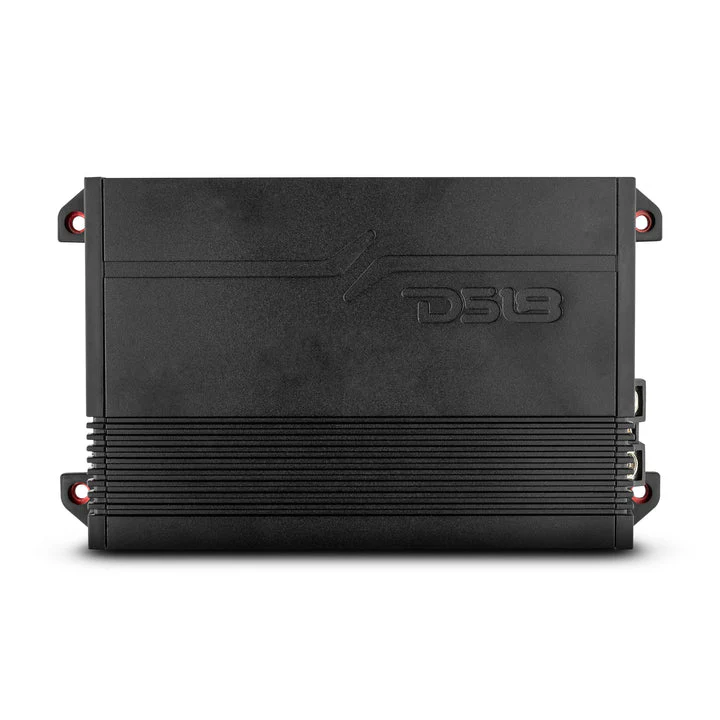

The heart of this package, the G700.2D amplifier, is a masterpiece. Operating on full-range Class-D circuit topology, the G700.2D effortlessly drives speakers to their full potential. With a MAX power output of 360W x 1CH when bridged, you can expect nothing short of perfection from this amplifier. Its adjustable gain range and crossover allow you to fine-tune the audio to suit your taste, for audio perfection every session.
Highlights
- Designed for car audio enthusiasts who want to boost the BOOM in their car's audio system.
- ZXi654 features a glass fiber cone for accurate sound reproduction, rubber surround for enhanced durability, and a steel basket for structural integrity.
- SQBASS68 fits under most car seats, rear cubbies, or medium-sized storage compartments.
- 2D has a MAX power output of 360W x 1CH when bridged, delivering crystal-clear sound on demand.
- Amplifier features adjustable gain range and crossover for fine-tuning the audio to suit individual preferences.
Great For
- Car Audio
- Pro Audio
Technical Details
| ZXI-654 | |
| Specifications | |
| Nominal Diameter | 6.5” / 165mm |
| Nominal Impedance | 4 ohm |
| RMS Power Handling | 80 Watts |
| MAX Power Handling | 240 Watts |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 40Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Speaker Type | 2-Way |
| Midrange | |
| Voice Coil Diameter | 1” / 25.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 14.46 oz / 410g |
| Tweeter | |
| Nominal Diameter | 1" (25.4mm) |
| Voice Coil Diameter | 0.8"(ø20.4mm) |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 0.3 oz / 8.5g |
| G700.2D | |
| Specifications | Full Range |
| Circuit Topology | Digital |
| Total Power | 700W |
| RMS Power @ 2 ohms | 2X180W |
| RMS Power @ 4 ohms | 2X100W |
| RMS Power @ 4 ohms Bridged | 1X360W |
| Total Harmonic Distortion | <.01% |
| s/n Ratio Ref 1w @ 4 ohms | >90dB |
| Gain Range | 0 2-6V |
| Crossover Range | 50Hz-2KHz |
| Frequency Range | 20Hz- 20KHz |
| Dimensions (inches) | 8.1 x 4.72 x 1.96 |
| SQBASS68 | |
| General Specifications | |
| Speaker Type / Size | 6x8" |
| Total RMS Power Handling | 150W |
| Total MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 77 dB |
| Frequency Response | 42 Hz-400 Hz |
| Speaker Specifications | |
| Voice Coil Diameter | 1.2" / 30.6mm |
| Cone Material | Polypropylene |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Body / Housing Material | Aluminum |
| Amplifier Specifications | |
| Amplifier Class | Digital |
| Amplifier Type | Subwoofer Monoblock |
| Number of Channels | 1Ch |
| Minimum Impedance | 2ohm |
| Signal to Noise | >80dB |
| Total Harmonic Distortion (THD) | <0.5% |
| Low Level Input Range | 0.1-5 Volts |
| High Level Input | 0.5-10 Volts |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 50-150Hz |
| Infrasonic Filter | 30Hz Fixed |
| Phase Selector | 0-180° |
| Led Indicator | Power/Protect |
| Power Input Terminal Size | 12Ga Wired |
| Fuse Size | 15A |
| Remote Level Control | Yes, Included |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Extra Features | |
| Remote Knob Cable Length | 16ft / 5m |
| Remote Knob Adjust Range | 0-30dB |
| Auto Turn-On | Yes, Signal Sensing |
| Measurements | |
| Overall Height | 2.95" / 75mm |
| Overall Width | 7.67" / 195mm |
| Overall Length | 10.2" / 260mm |
