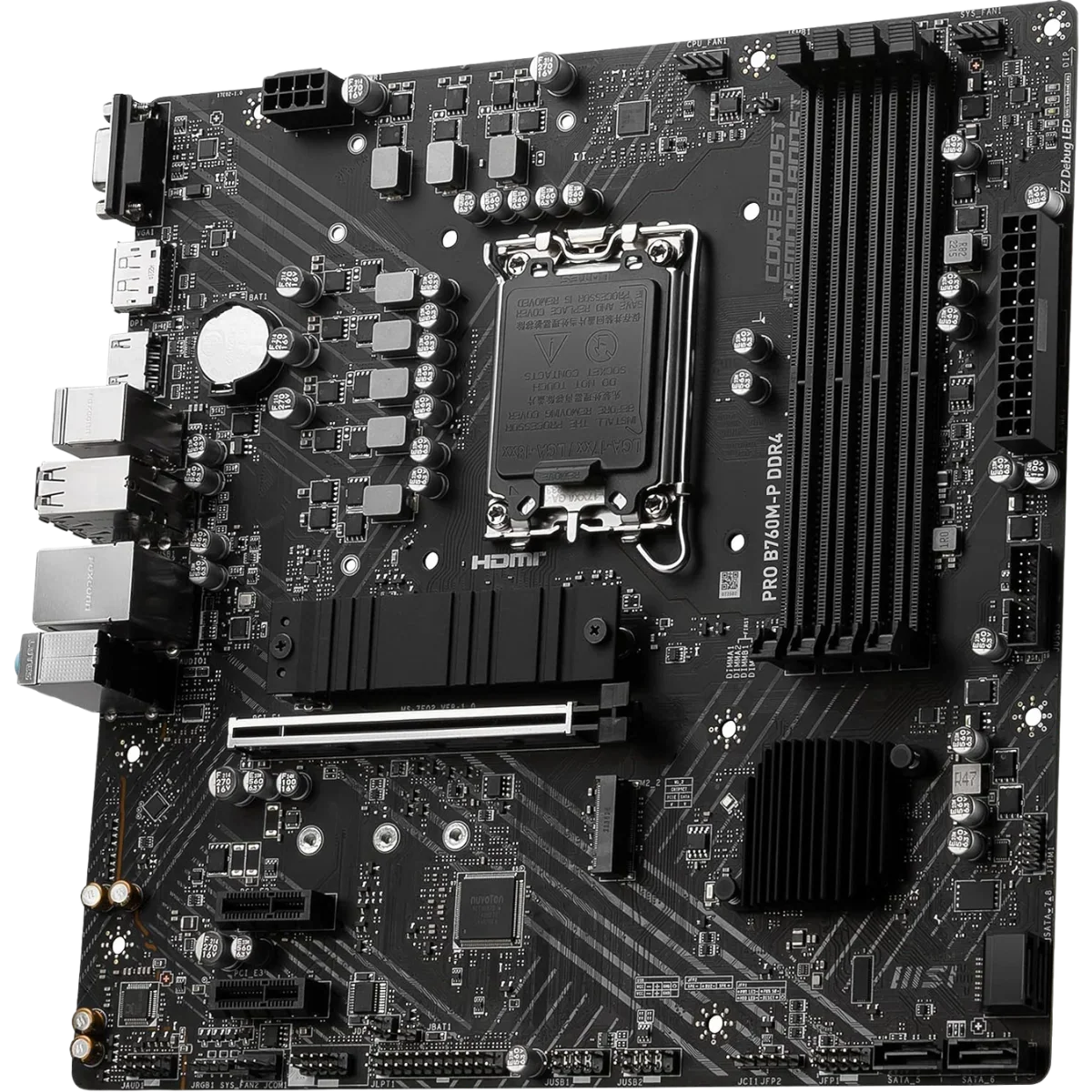

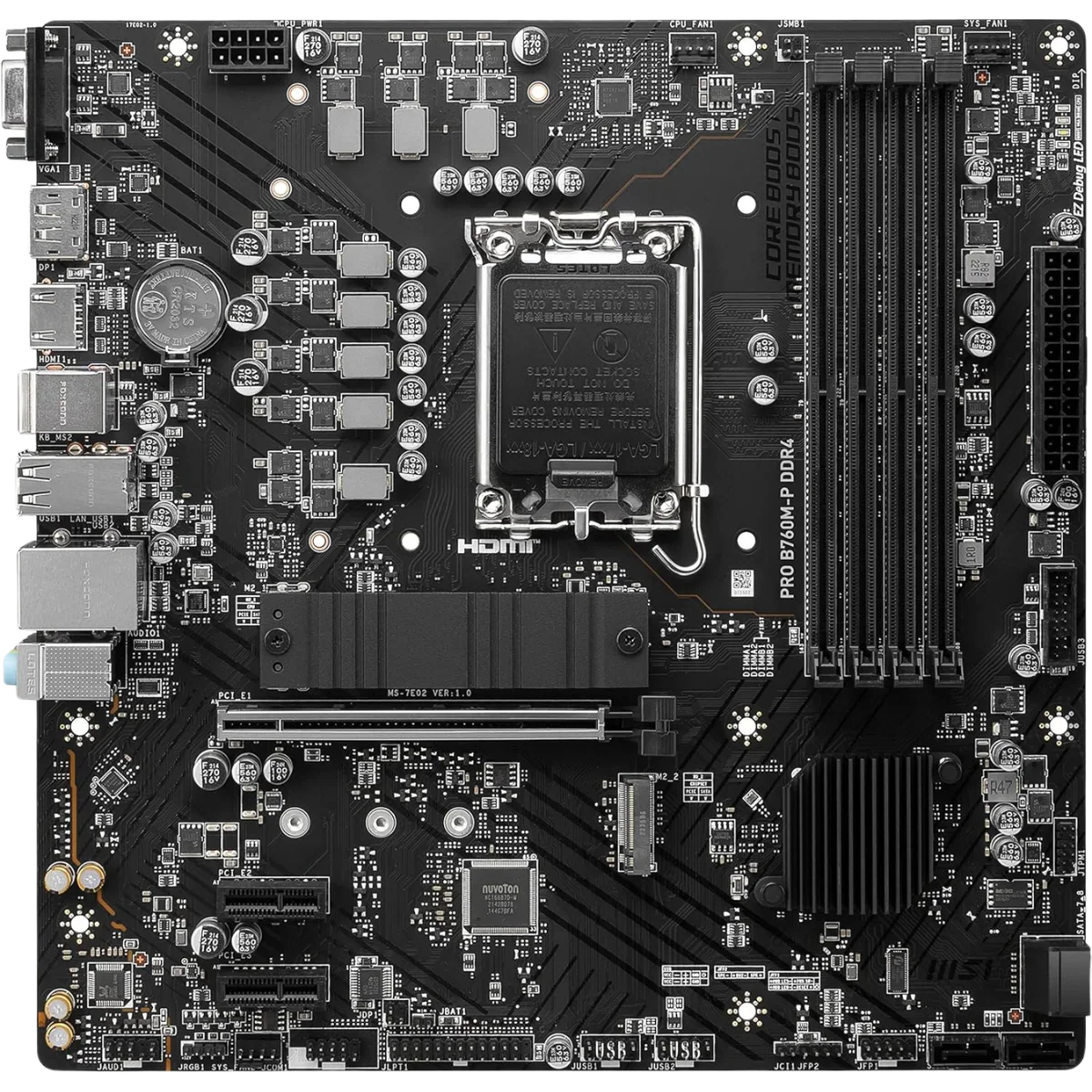

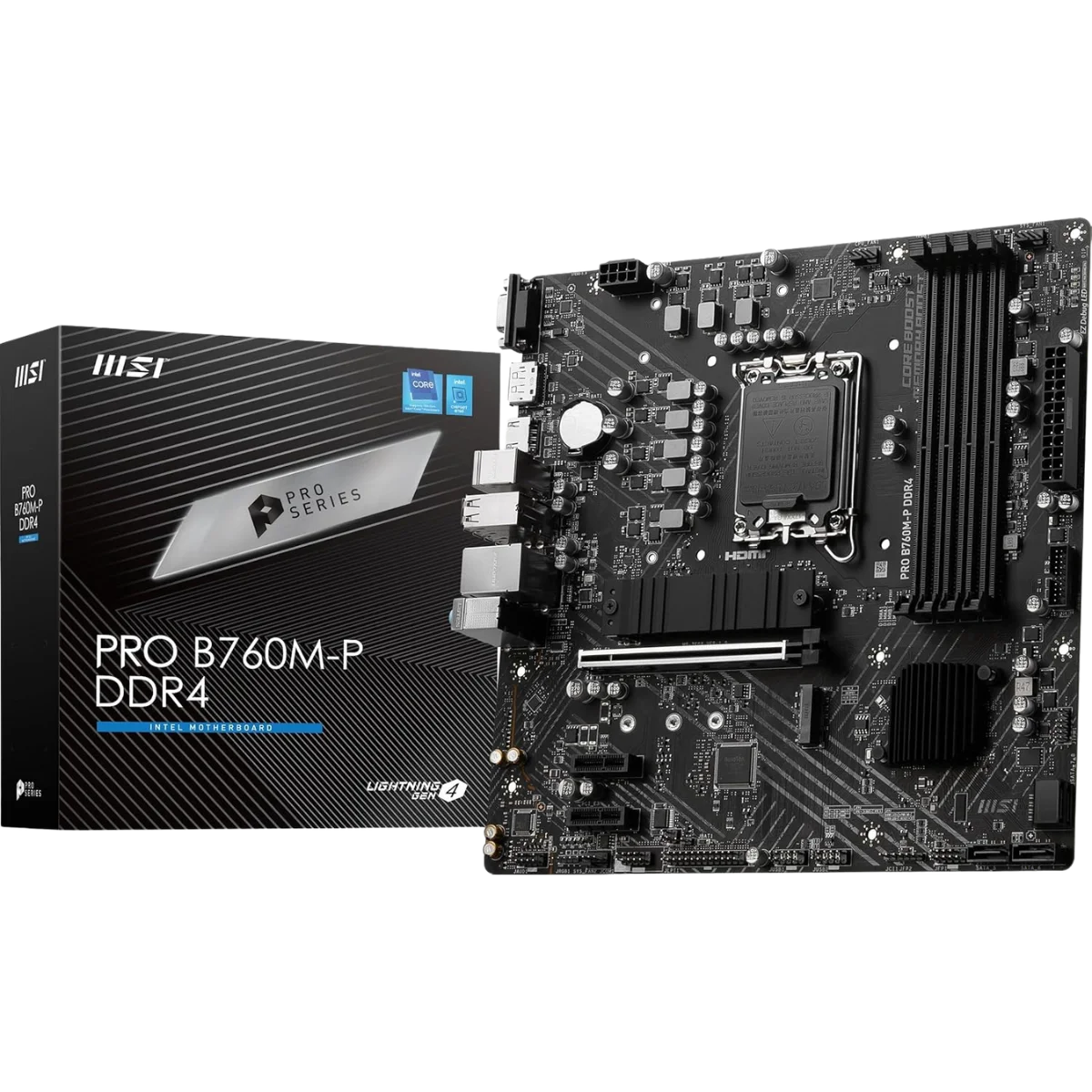

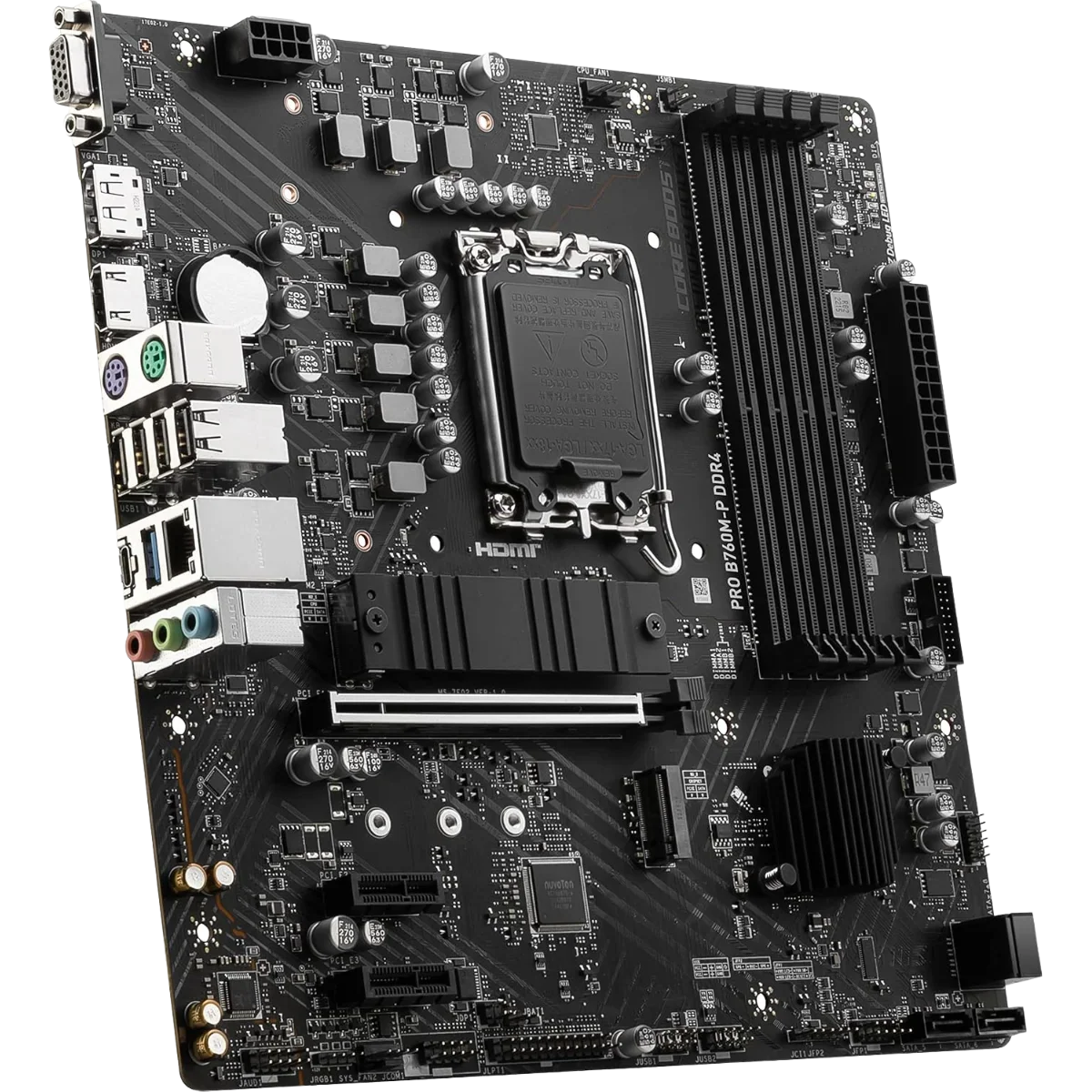

MSI PRO B760M-P DDR4 Motherboard | Intel 12th–14th Gen | PCIe 4.0
The MSI PRO B760M-P DDR4 Motherboard is built for Intel 12th, 13th, and 14th Gen processors with the LGA 1700 socket. Designed for reliability and performance, it supports DDR4 memory, PCIe 4.0, and M.2 storage, making it ideal for productivity-focused builds and home office PCs.
Product Specifications
-
Brand: MSI
-
Model: PRO B760M-P DDR4
-
Chipset: Intel B760
-
CPU Socket: LGA 1700
-
CPU Support: 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors
-
Form Factor: Micro-ATX (mATX)
-
Memory Support: Dual-channel DDR4 (up to 128GB, 5333+ MHz OC)
-
Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
-
Storage: 1 x M.2 Gen4 x4 slot, 4 x SATA 6Gb/s ports
-
USB Ports: USB 3.2 Gen2 Type-A, USB 3.2 Gen1, USB 2.0
-
Display Outputs: 1 x HDMI, 1 x DisplayPort
-
Networking: 1 x Realtek 1GbE LAN
-
Audio: High-definition 7.1-channel audio
-
Power Design: Core Boost with digital PWM
-
BIOS: Click BIOS 5 with EZ Mode and Advanced Mode
- Operating System Support: Windows 10 / 11
Key Features
Supports Intel 14th Gen Processors: Fully compatible with the latest Intel CPUs, ensuring top-tier performance for modern workloads.
PCIe 4.0 and M.2 Storage Ready: Enables fast data transfer and NVMe SSD support for faster boot and load times.
Reliable DDR4 Memory Performance: Supports up to 5333+ MHz (OC), providing stability for multitasking and creative applications.
Comprehensive Connectivity Options: Includes HDMI, DisplayPort, and multiple USB 3.2 Gen2 ports for high-speed device access.
Durable Build with Core Boost Technology: Optimized power delivery ensures smooth and stable CPU performance under heavy loads.
How It Works
The MSI PRO B760M-P DDR4 uses the Intel B760 chipset to support 12th to 14th Gen Intel Core processors on the LGA 1700 socket. Its PCIe 4.0 and M.2 interfaces enable rapid data transfer for gaming or productivity applications. Users can install high-frequency DDR4 memory for enhanced responsiveness, while the Click BIOS 5 interface allows for easy tuning and configuration. With multiple USB and video outputs, it’s an ideal motherboard for both workstations and entry-level gaming setups.
FAQs
Does this motherboard support DDR5 RAM?
No, it supports DDR4 memory only, up to 5333+ MHz (OC).
Is Wi-Fi built into the PRO B760M-P DDR4?
No, it doesn’t include Wi-Fi, but users can add a PCIe or USB Wi-Fi adapter.
Can it support Intel 14th Gen processors out of the box?
Yes, it supports 12th, 13th, and 14th Gen Intel CPUs without requiring a BIOS update.
How many M.2 slots does this motherboard have?
It includes one M.2 Gen4 slot for NVMe SSDs.
