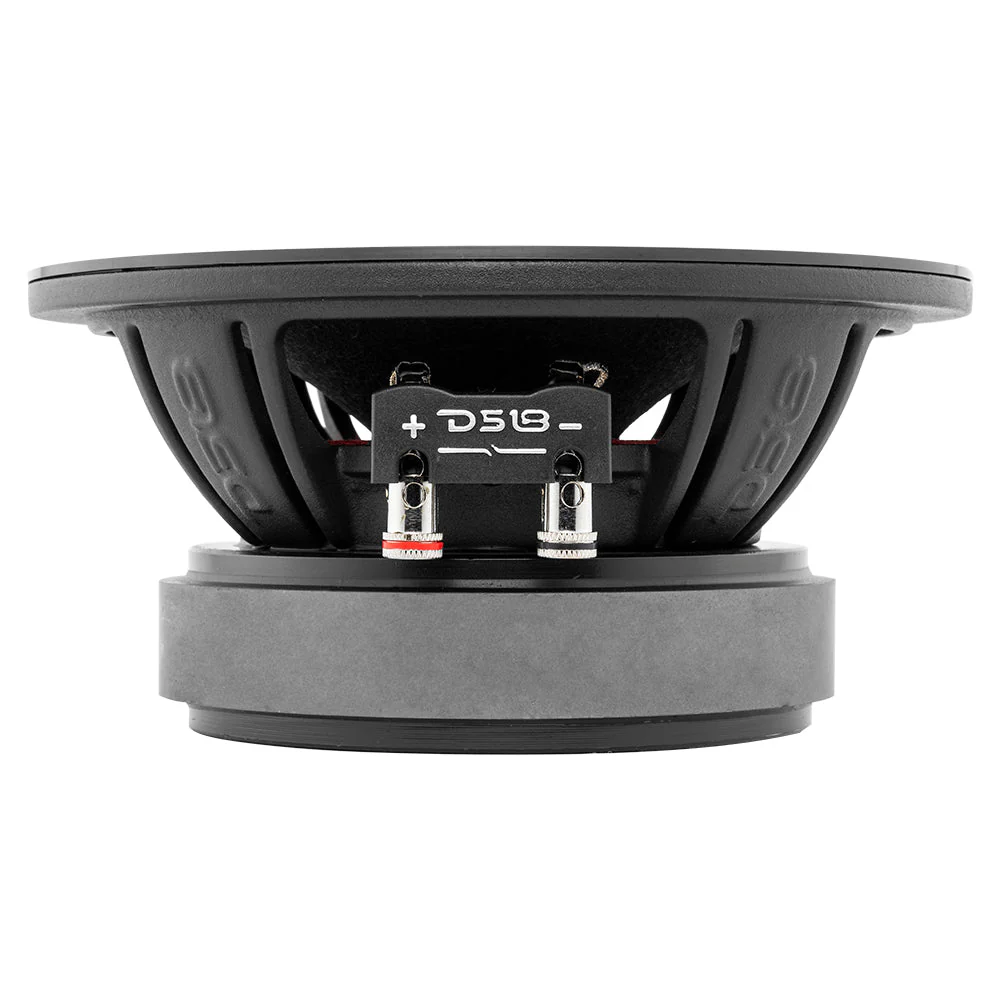

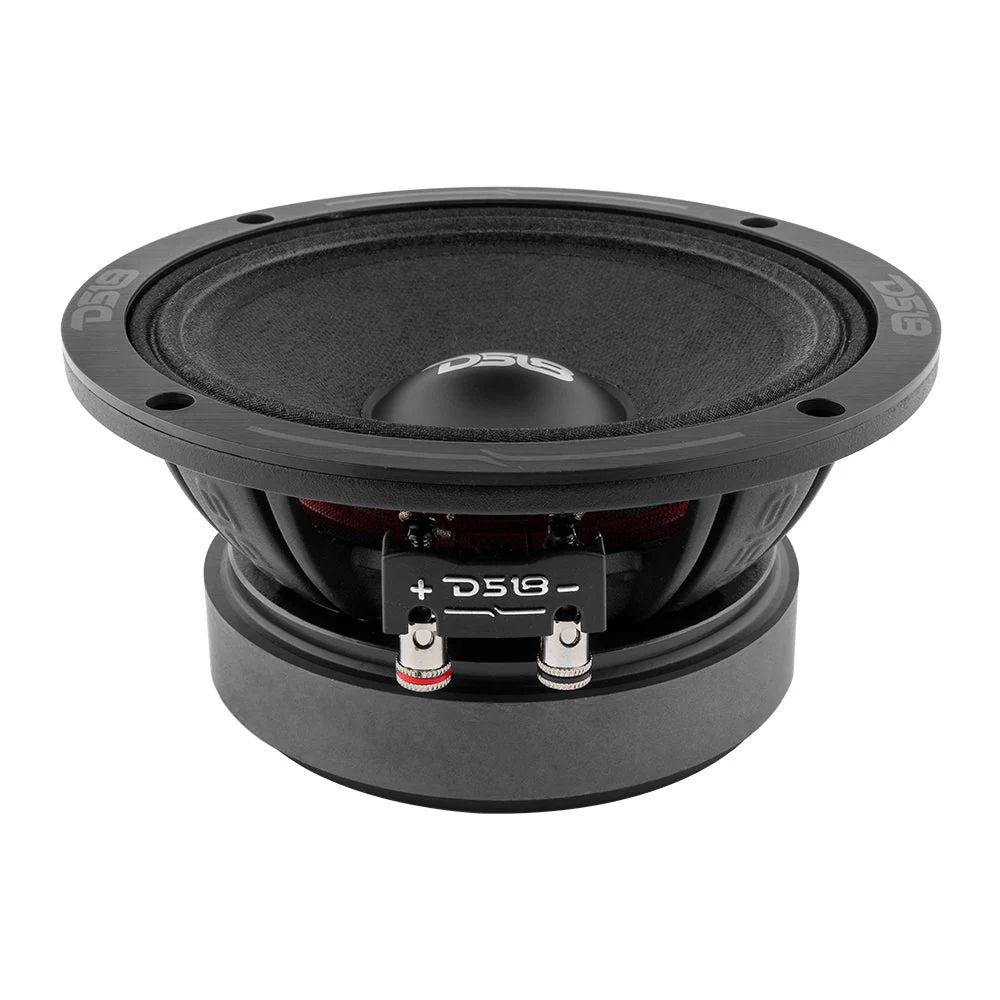

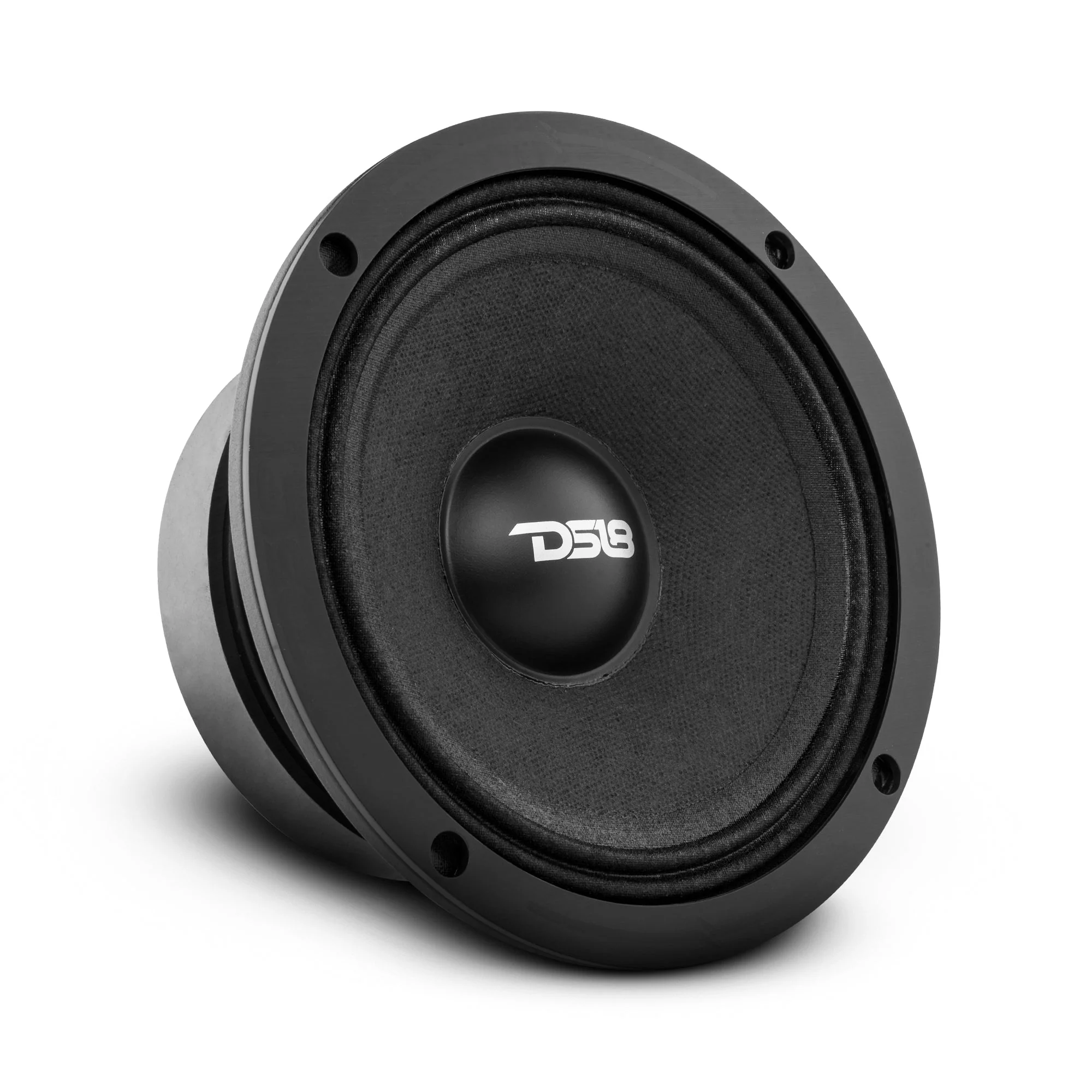

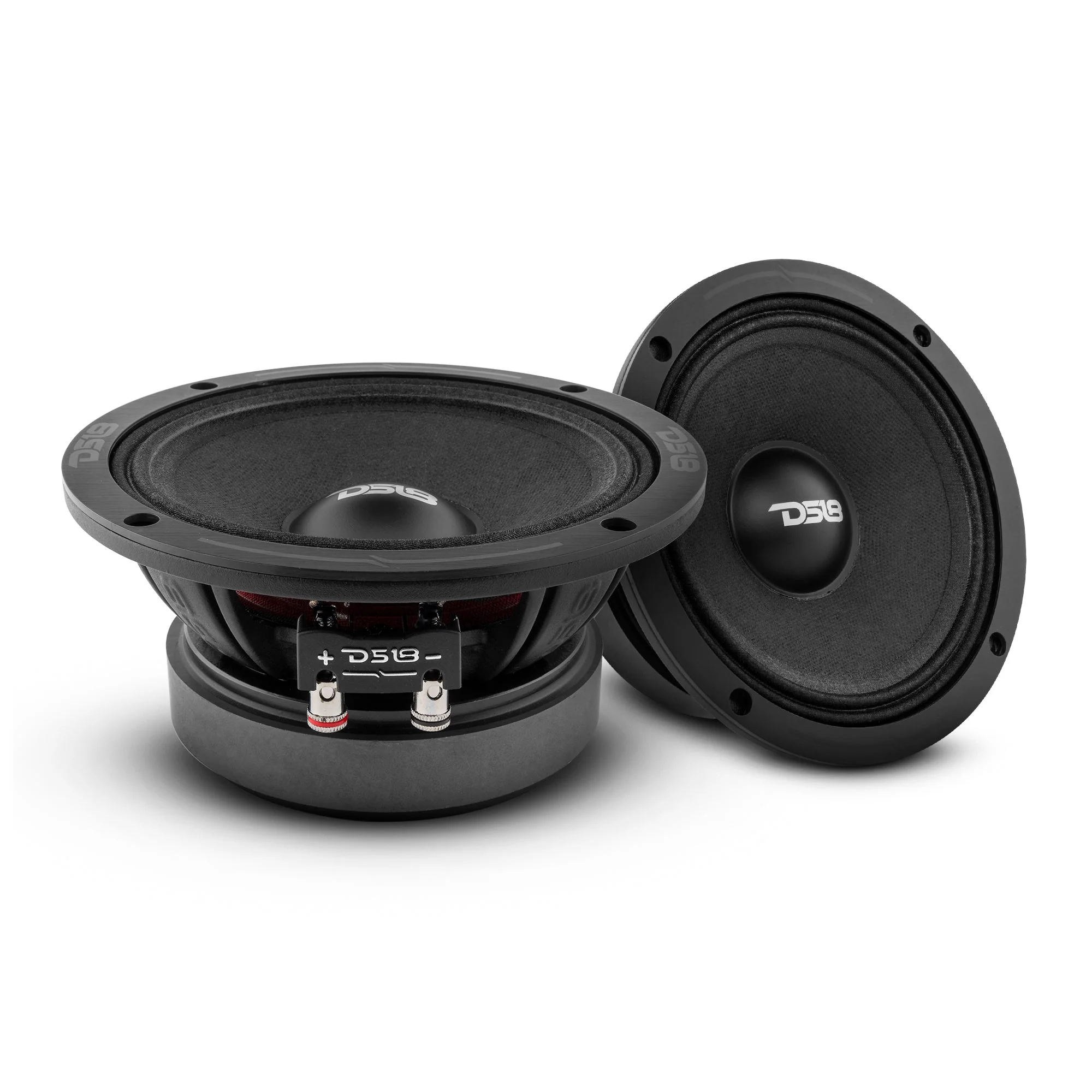

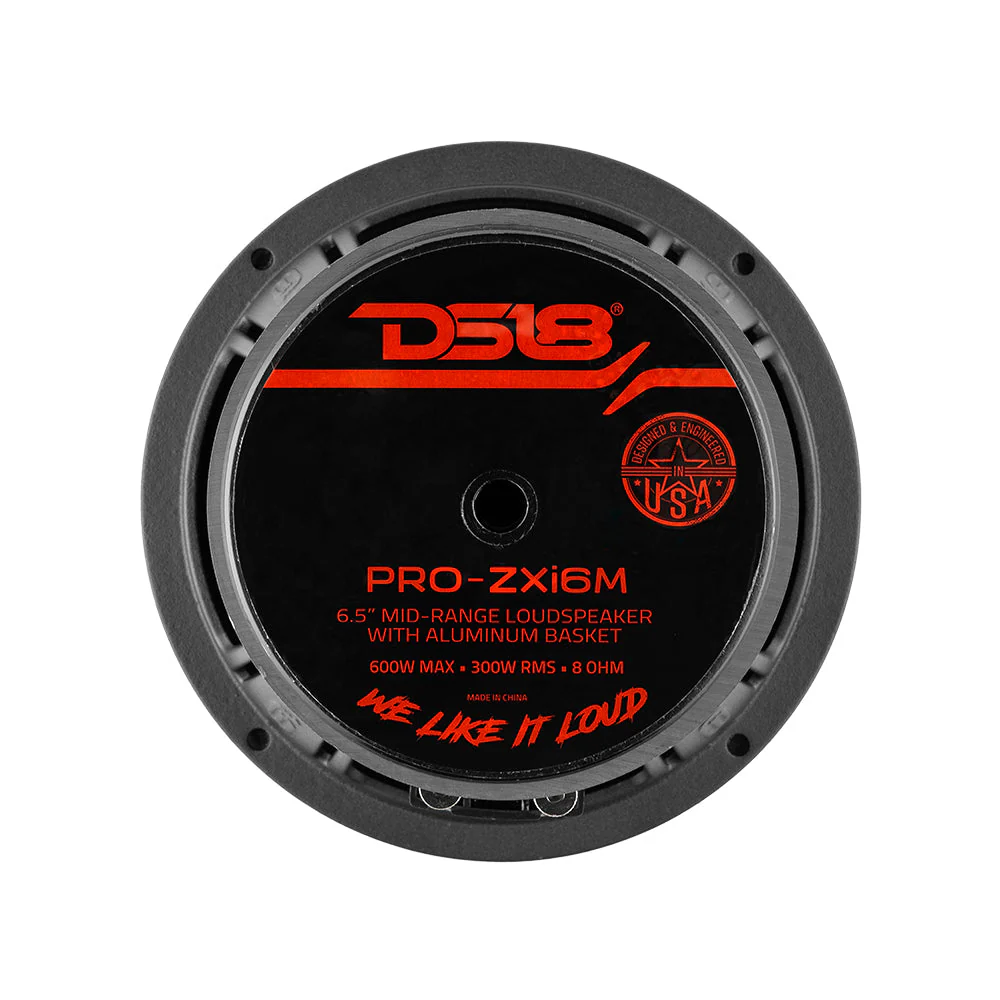

PRO-ZXI 6.5" Mid-Range Loudspeaker With Neodymium/Ferrite Magnets 300 Watts Rms 8-Ohm

DS18 PRO-ZXI6M 6.5" Mid-Range Pro Audio Loudspeaker 600 Watts 8-Ohm

The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.

These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

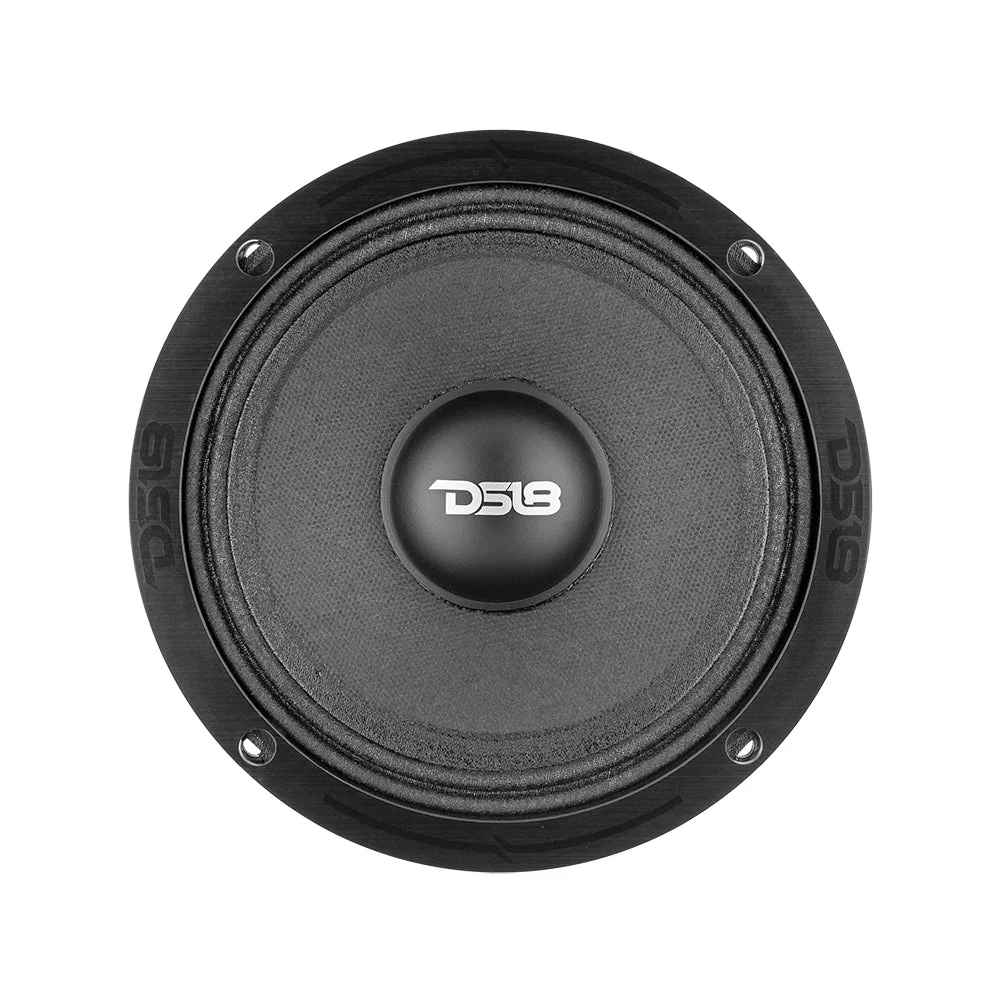

The PRO-ZXi6M has a beautiful gloss black basket face with strong black on black bullet dust cap.

This 8-ohm 6.5 inch speaker handles an enormous 300 watts RMS and 600 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.

Key Features

• 6.5 inch black on black Pro-Audio Loudspeaker.

• Max Power Handling: 600 watts

• RMS Power Handling: 300 watts

• Frequency Response: 100Hz-8KHz

• Voice Coil Diameter: 1.5"

• Voice Coil Material: CCAW

• Impedance: 8-Ohm

• Sensitivity: 97dB

• Magnet Weight: 30 + 3  Oz

• Magnet Material: Ferrite + Neodymium

• Mounting Depth: 2.83"


• Car Audio
• Pro Audio
• Motorcycles
• Home Studios
• Hi-Fi Installation
• Stunt Walls
• DIY Projects

Technical Details

                                                                                                                    PRO- ZXI6M Product Manual

SPECIFICATIONS
Nominal Diameter	6.5" / 165mm
Nominal Impedance	8 ohm
RMS Power Handling	300W
MAX Power Handling	600W
Sensitivity (1w/1m)	97dB
Frequency Response	100Hz - 8KHz
Recommended HI Pass Crossover	160Hz
Pair or single	Single
MOTOR
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	Glass fiber
Winding Material	CCAW
Cone Material	Paper
Dust Cap Material	Paper
Bullet Material	N/A
Surround Material	Cloth
Basket Material	Aluminum
Basket Color	Black Sandblasted
Magnet Material	Ferrite + Neodymium
Magnet Weight	30 + 3 Oz
Displacement Volume	0.36L / 0.012ft3
MEASUREMENT
Overall Diameter	6.5" / 166mm
Overall Depth	3.16" / 80.5mm
Front Mount Baffle Cutout	5.78" / 147mm
Mounting Depth	2.83" / 72mm
Motor Diameter	4.72" / 120mm
